ISO 80369-6 Neuraxial Connector Products
Browse neuraxial Figure reference connectors by male or female side, lock or slip role and test context.
6 products available for selection
Browse the current products, open one product page, and include the Standard Part, Figure or method, mating side, quantity and documentation needs in the quotation request.
ISO 80369 Neuraxial Reference Connector Set
Reference connector selection path for matching standard part, connector role, counterpart and calibration needs.

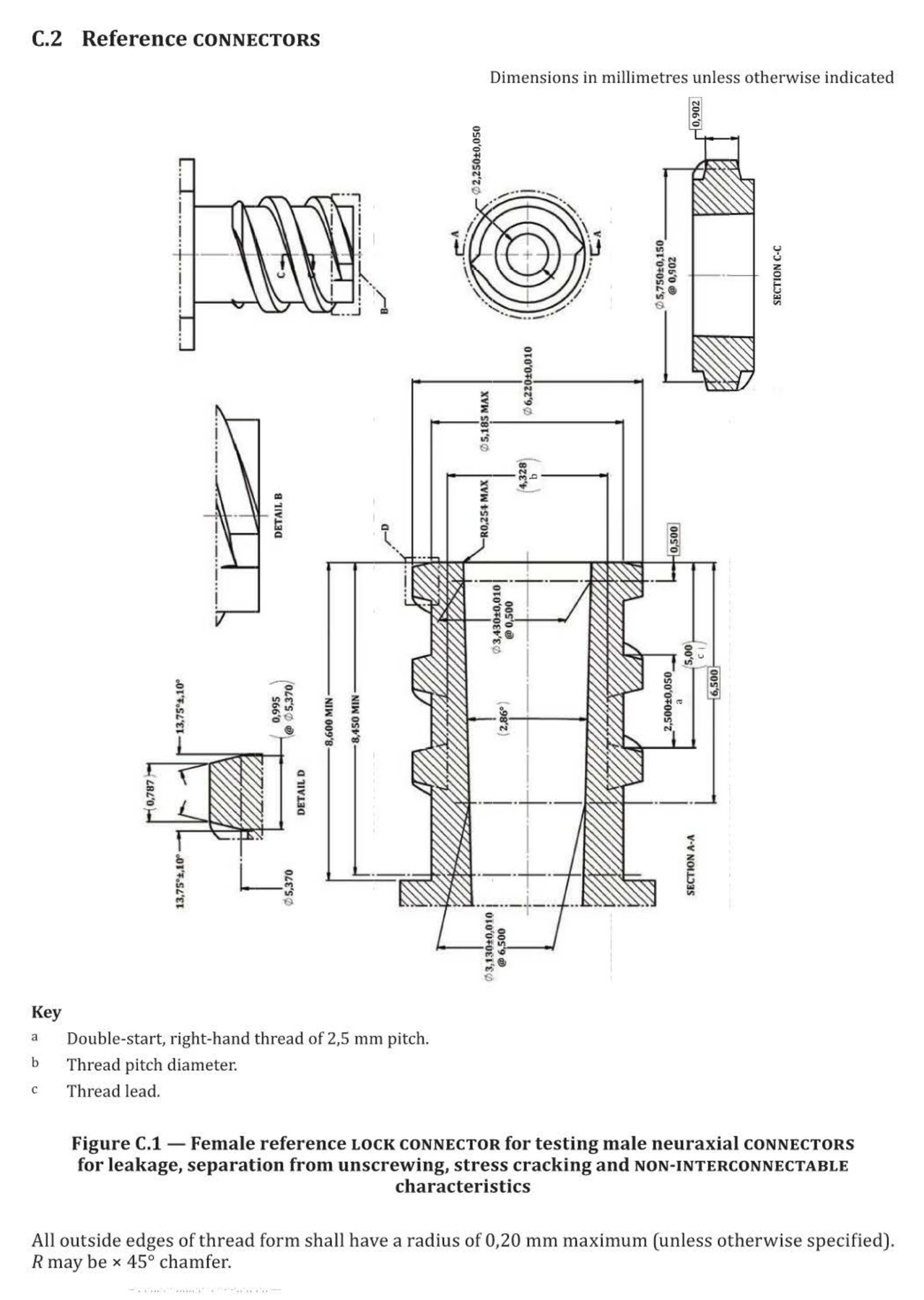

ISO 80369-6 Figure C.1 Female Neuraxial Reference Lock Connector
ISO 80369-6 Figure C.1 Female Neuraxial Reference Lock Connector identifies the female neuraxial role for Figure C.1. Use it to confirm mating connector side, lock interface, related test method, calibration scope and RFQ information before quotation.

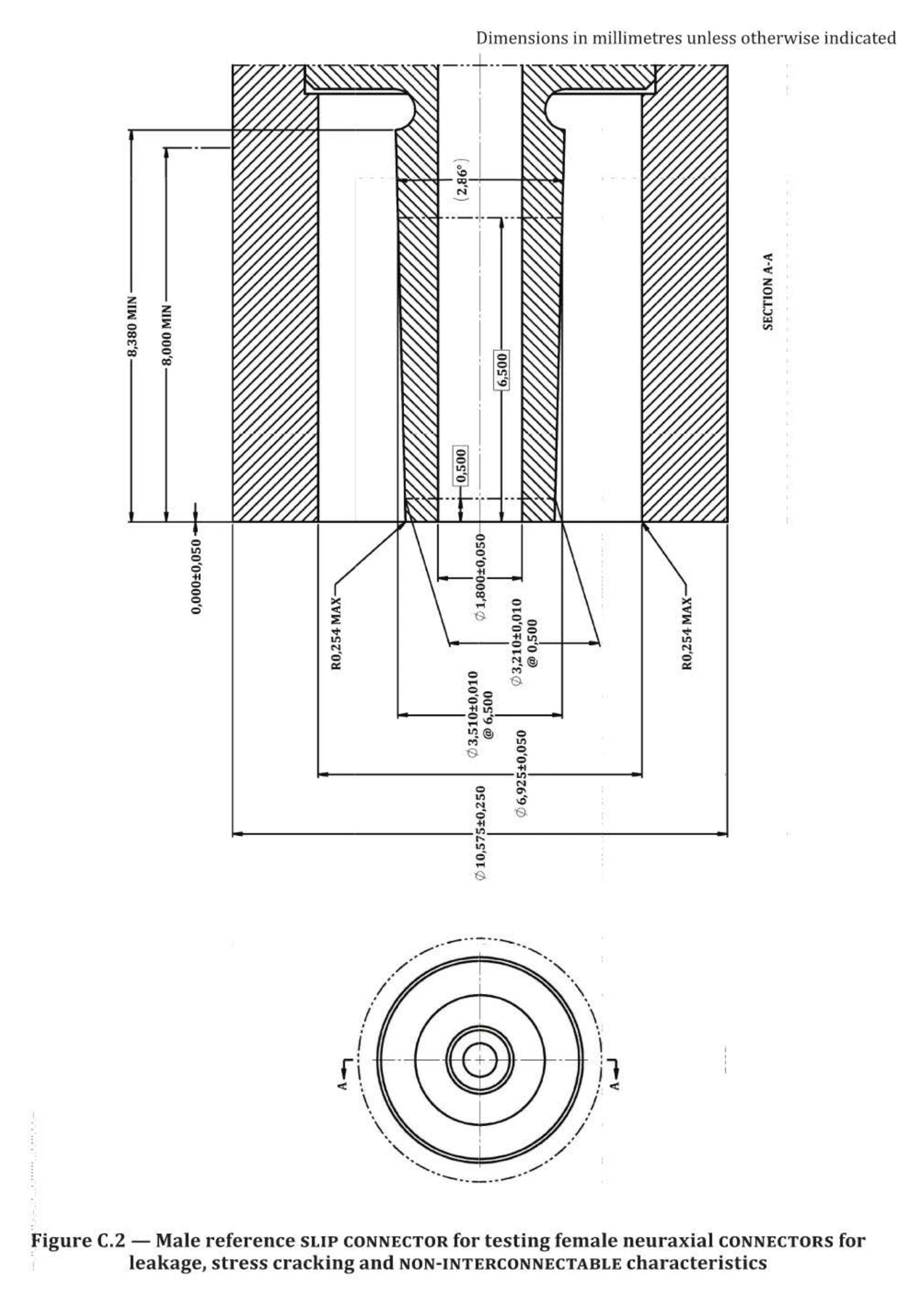

ISO 80369-6 Figure C.2 Male Neuraxial Reference Slip Connector
ISO 80369-6 Figure C.2 Male Neuraxial Reference Slip Connector identifies the male neuraxial role for Figure C.2. Use it to confirm mating connector side, slip interface, related test method, calibration scope and RFQ information before quotation.

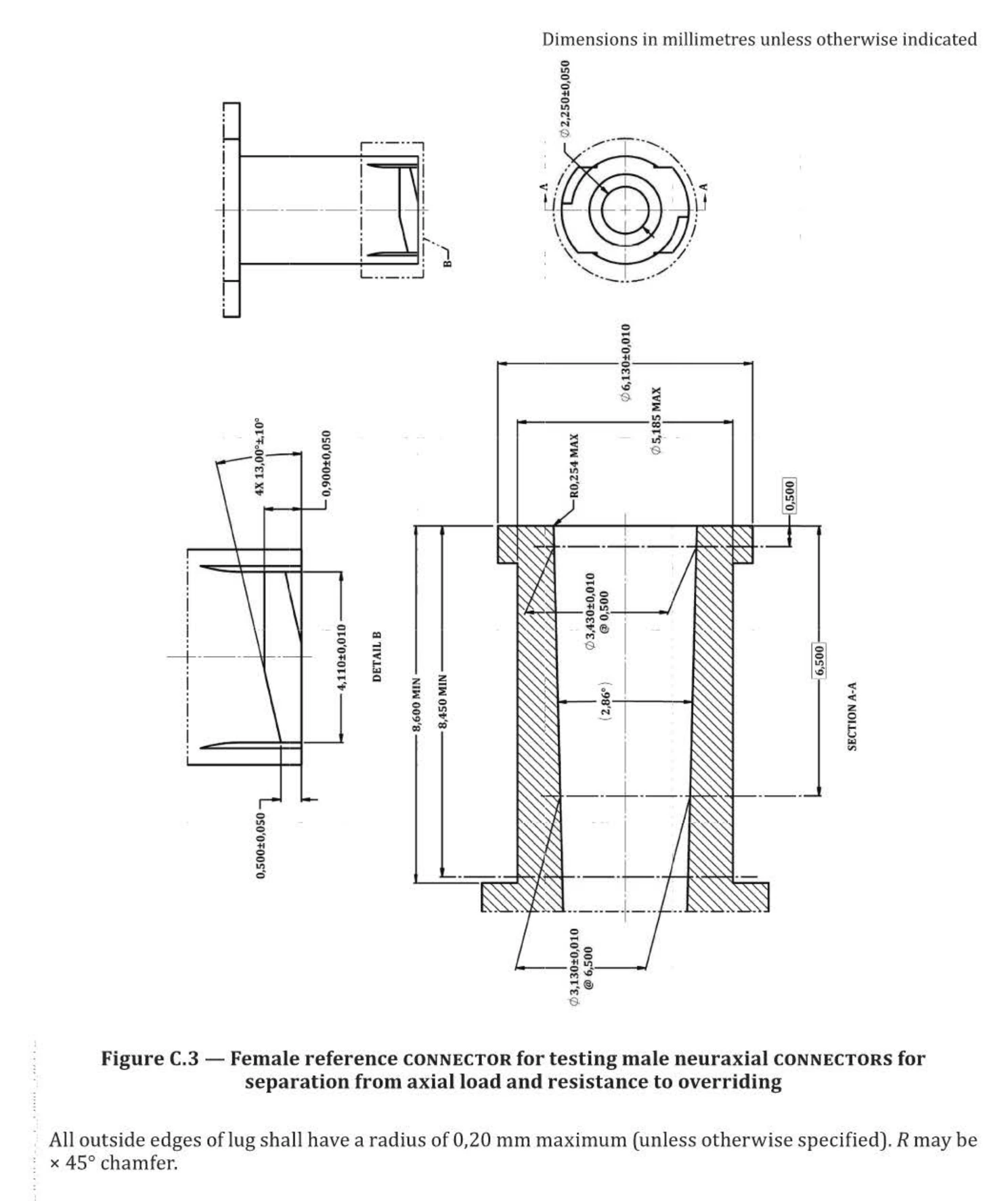

ISO 80369-6 Figure C.3 Female Axial-Load Neuraxial Reference Connector
ISO 80369-6 Figure C.3 Female Axial-Load Neuraxial Reference Connector identifies the female neuraxial role for Figure C.3. Use it to confirm mating connector side, lock interface, related test method, calibration scope and RFQ information before quotation.

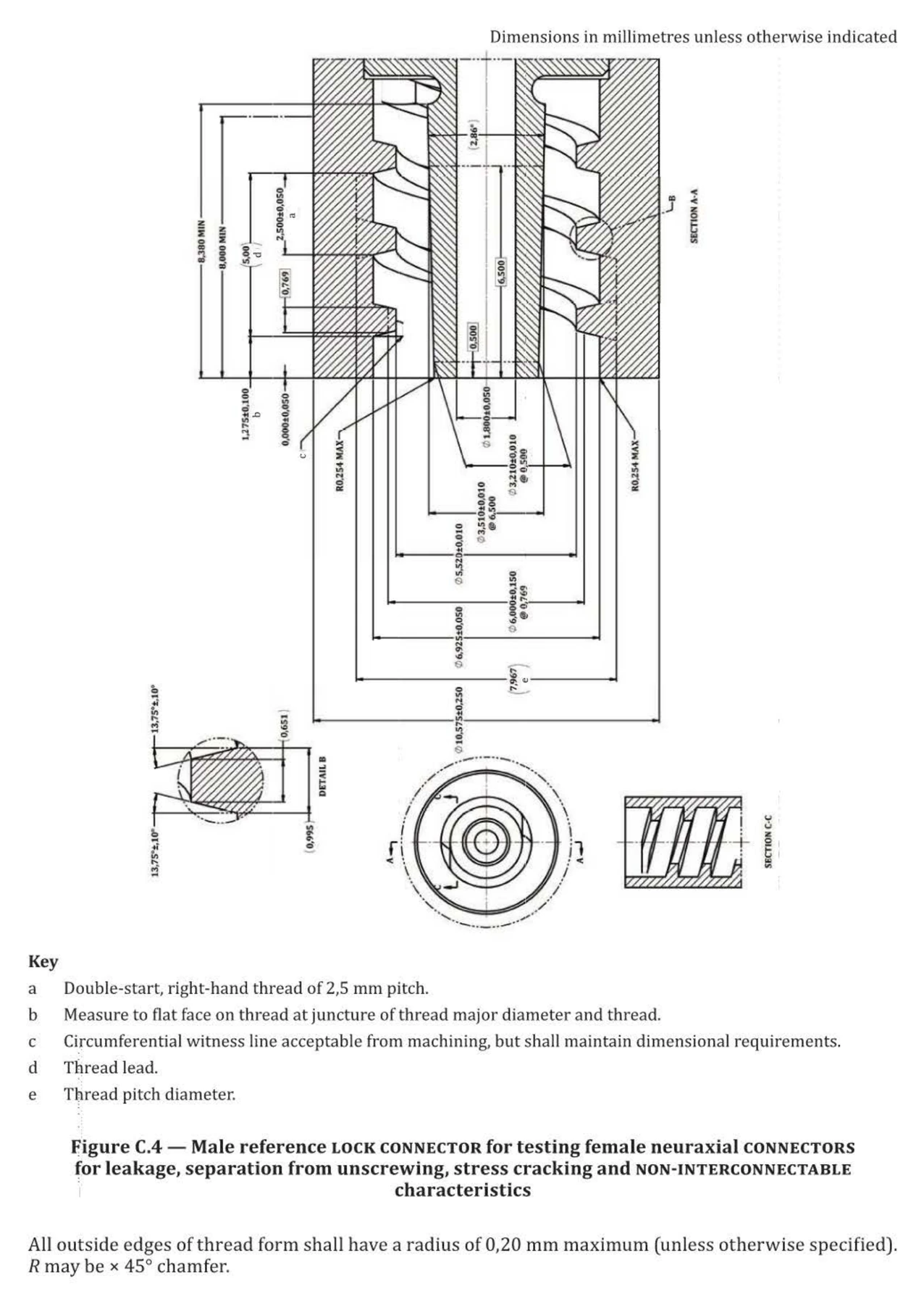

ISO 80369-6 Figure C.4 Male Neuraxial Reference Lock Connector
ISO 80369-6 Figure C.4 Male Neuraxial Reference Lock Connector identifies the male neuraxial role for Figure C.4. Use it to confirm mating connector side, lock interface, related test method, calibration scope and RFQ information before quotation.

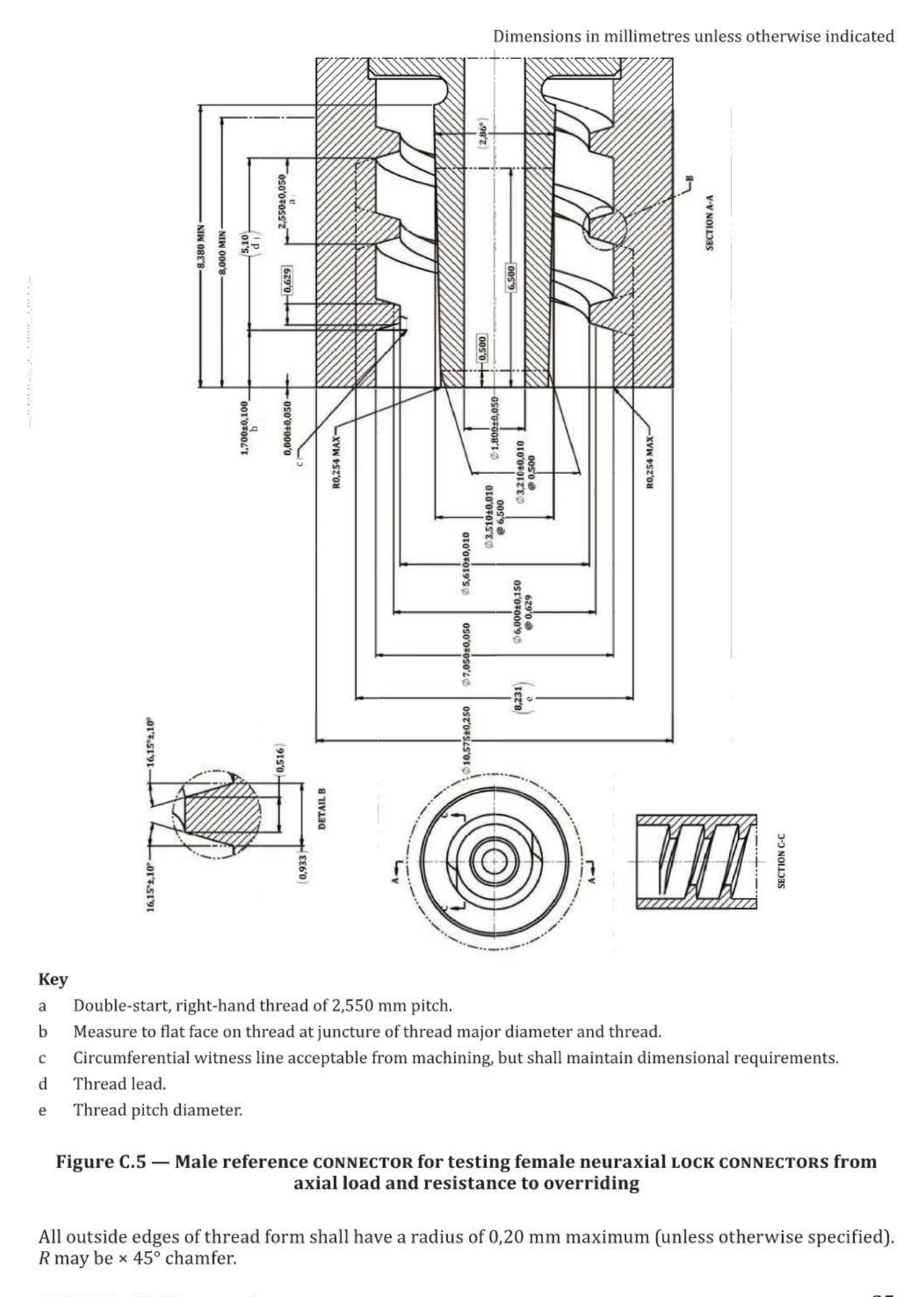

ISO 80369-6 Figure C.5 Male Axial-Load Neuraxial Reference Connector
ISO 80369-6 Figure C.5 Male Axial-Load Neuraxial Reference Connector identifies the male neuraxial role for Figure C.5. Use it to confirm mating connector side, lock interface, related test method, calibration scope and RFQ information before quotation.
Start with the connector or test role
State the tested connector, male or female side, lock or slip interface, and the Figure or Annex when known.
Review the standard relationship
Use the technical standard page to understand Figure roles, mating counterparts and related ISO 80369-20 methods.
View ISO 80369-6Quote the complete requirement
Include counterpart, fixture, equipment, calibration and documentation needs so the requested scope is unambiguous.
Request a quote
