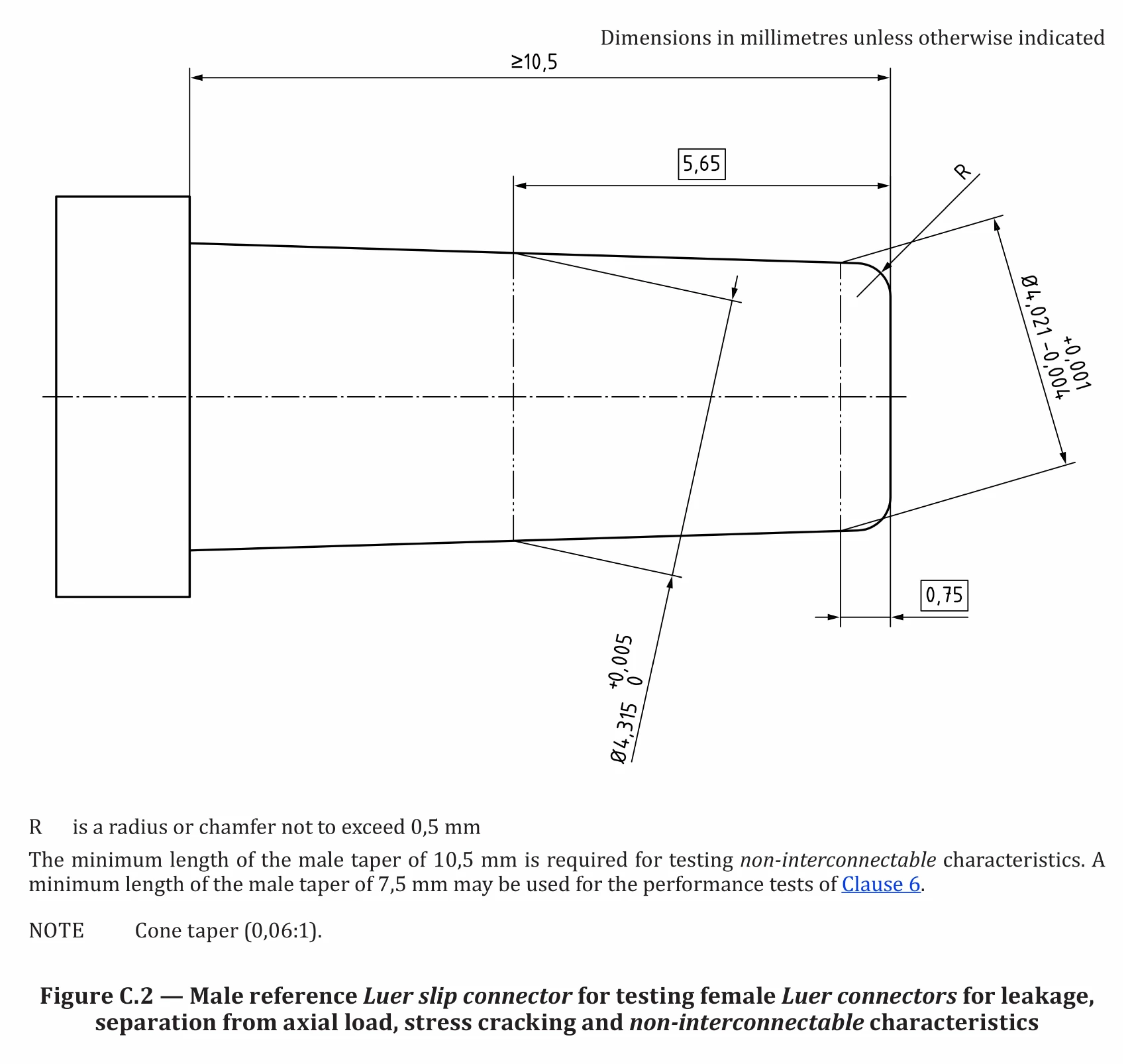

Use this drawing to identify the Figure, connector side, mating relationship and dimensional reference before quotation. It is an engineering reference, not the main product photo.
| Standard | 2021 |
|---|---|
| Figure | C.2 |
| Drawing role | Public reference technical drawing |
| Product photo | Available above |
| Controlled drawing | Available with order review |
| Standard / Figure | Figure C.2 |
|---|---|
| Product type | reference connector |
| Connector family | reference connector family |
| RFQ inputs | Mating connector, method, quantity, fixture and certificate needs |
| Calibration | Discuss certificate scope and traceability needs for the requested product scope |
Include the mating connector, required test method, fixture need, quantity, calibration scope and documentation expectation when asking for this Figure item.
Use the method path to decide whether the order needs only this item, a matched counterpart, a fixture, test equipment or a complete set.

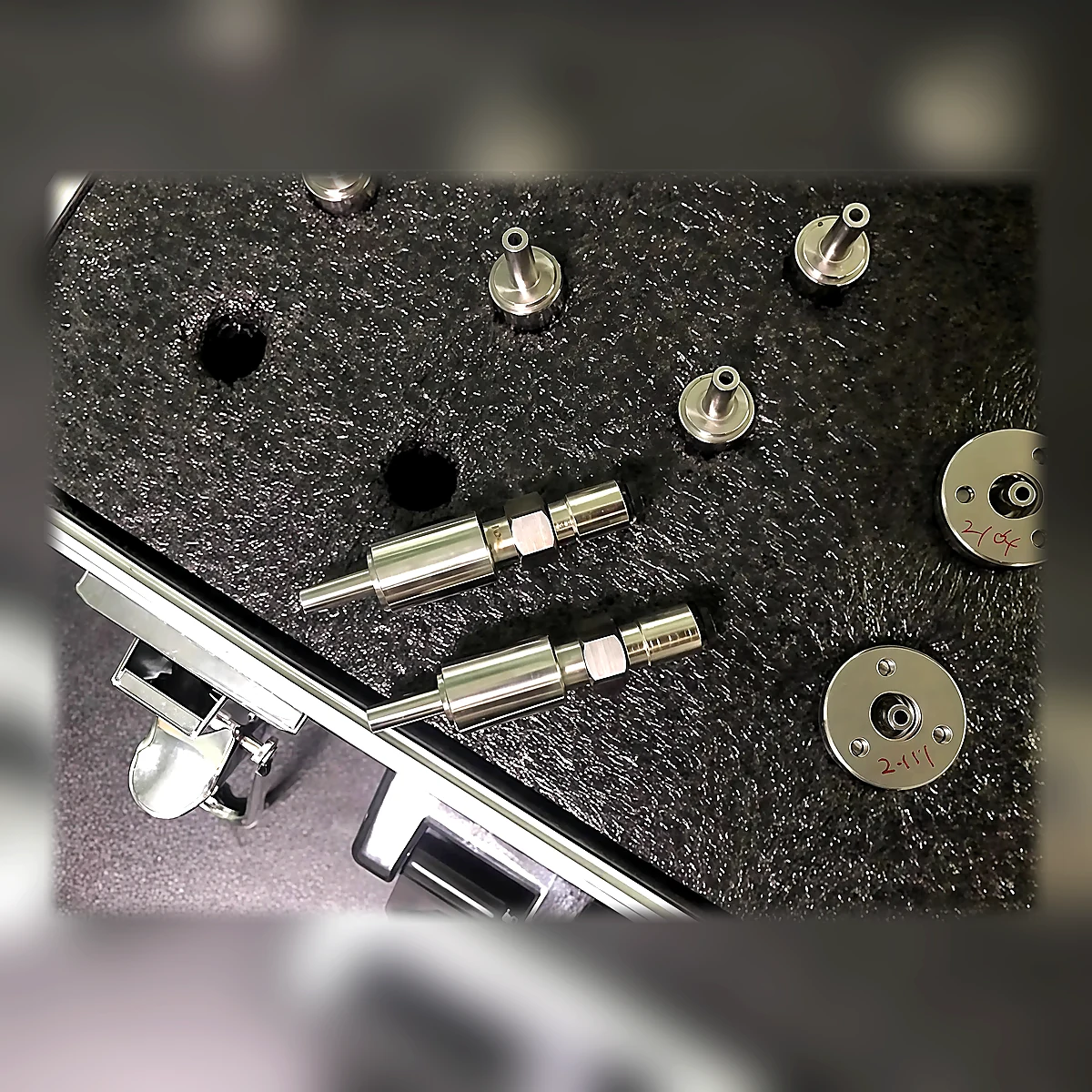

ISO 80369-7 Figure C.2 Male Reference Luer Slip Connector is the reference connector used with ISO 80369-7:2021, Annex C, Figure C.2. It addresses a practical buyer problem: Luer connector buyers need to separate reference connectors, gauges and complete sets before choosing a slip or lock test setup. Use the page to confirm the connector side, mating counterpart, interface type, test path and quotation scope before ordering the item or a matched set.
Start with whether the sample is male or female, whether the interface is Luer slip or Luer lock, and whether the task is functional testing or gauge inspection. Select Figure C.2 when the sample under evaluation matches a female mating connector; the reference item supplies the opposite mating side for the specified setup. A frequent purchasing error is using a gauge when the method requires a reference connector, or choosing lock when the sample/interface is slip.
This page is most useful for Luer connector manufacturing, medical device R&D, QA incoming inspection, laboratory method setup and quotation for matched reference/gauge sets. Buyers usually arrive here because they need a known mating reference before planning leakage performance, axial-load separation, stress-cracking evaluation, non-interconnectable characteristics, not because they are shopping for a general-purpose connector.
This item belongs to ISO 80369-7:2021, Annex C, Figure C.2. Product type: reference connector. Gender: male. Connection type: Luer. Related ISO 80369-20 method paths include leakage-pressure-decay, axial-load-separation, stress-cracking. The standard Figure identifies the reference relationship; KingPo quotation review confirms the controlled drawing, documentation and certificate wording for the selected order scope.
Use this item when the test object is a female mating connector and the evaluation concerns leakage performance, axial-load separation, stress-cracking evaluation, non-interconnectable characteristics. In a complete setup it may work with pressure, force, torque or fixture equipment depending on the method. The Figure item defines the mating reference role; it is not a leakage tester, force tester or torque tester by itself.
The listed gender is male, so the tested sample should be prepared with the opposite mating side. Slip interfaces usually require buyers to focus on axial engagement, leakage and mating fit rather than lock torque. Include the sample drawing or photo when the connector side, thread or slip interface is not obvious.
Depending on the method, the request may also need leakage equipment, axial-load equipment, torque equipment, a connector support fixture or a stress-cracking fixture. For this standard family, the RFQ should emphasize sample side, slip/lock interface, Figure number, reference connector versus gauge need, matched counterpart and certificate scope.
For Figure C.2, the counterpart is a female mating connector. This item can be discussed as an individual Figure product or as part of a matched set when the method requires a counterpart, fixture and storage case. Include whether the counterpart, storage case, fixture, gauge or test equipment should be quoted together.
Calibration or dimensional verification should be discussed for the selected Figure item, not assumed for the whole product family. Ask for certificate wording, measured features, traceability route and recalibration interval when those details are required for laboratory records or supplier qualification.
Include ISO 80369-7, Figure C.2, tested connector type, required mating side, lock or slip connection, related method (leakage-pressure-decay, axial-load-separation, stress-cracking), quantity, counterpart need, complete-set need, fixture or equipment need, certificate wording and shipping region. Attach a sample drawing or photo when the connector side or interface is not obvious.
Quote requests should include product, Figure, standard part, connector side, mating counterpart, test method, fixture need, quantity, calibration requirement and certificate expectation.
Request this productYes, but include ISO 80369-7, Figure C.2, a female mating connector, quantity and certificate needs so KingPo can identify the correct item scope.
No. It should be treated as a reference connector or component for leakage performance, axial-load separation, stress-cracking evaluation, non-interconnectable characteristics. A production connector should not be substituted unless KingPo confirms the function and acceptance basis.
Include ISO 80369-7, Figure C.2, tested connector, required mating side, quantity, certificate requirement, calibration need and any related ISO 80369-20 method such as leakage-pressure-decay, axial-load-separation, stress-cracking.
Controlled dimensions and tolerances should be confirmed from approved source documents and KingPo engineering data during quotation.
A complete set is more appropriate when the buyer also needs the counterpart, fixture, storage case, gauge, equipment interface or certificate package for Figure C.2.
