Quality & Engineering Verification
Quality & Engineering Verification for Medical Connector Test Products
KingPo applies product-specific verification to medical connector reference connectors, gauges, fixtures and test equipment. The scope is defined by the applicable standard, product configuration and requested documentation. Dimensional inspection, functional checks, measurement review and release records are combined as appropriate so laboratories, manufacturers and QA teams can evaluate what will be supplied before ordering.
KingPo inspection and metrologyProduct-specific verification for connector gauges, reference connectors, fixtures and test equipment.
ScopeReference connectors, gauges, fixtures and test equipment
FocusDimensional conformity, function and documented release
StandardsISO 80369 and related connector test requirements
DocumentationInspection, test and calibration records as agreed
ApplicationLaboratory, production QA and engineering verification
Quality approach
Verification follows the product type
Each product category has different critical features, interfaces and evidence needs. The inspection plan is matched to the confirmed configuration rather than applied as a generic checklist.
Gauges
Gauge type, contact features and key dimensions are reviewed using the inspection method appropriate to the geometry.
Fixtures
Interfaces, alignment and load paths are checked for the intended connector, method and supporting instrument.
Test equipment
Functions, measurement channels, fixtures and reporting expectations are confirmed for the agreed test configuration.
Verification workflow
From requirement review to documented release
The exact route varies by product type. A reference connector may require more dimensional evidence, while test equipment also requires configuration and functional checks.
- 01
Requirement review
Confirm the standard, figure or annex, connector family and intended test.
- 02
Technical mapping
Translate the requirement into the correct product, mating interface and verification points.
- 03
Manufacturing control
Control material, process and critical features against the approved product definition.
- 04
Dimensional inspection
Measure relevant geometry with suitable dimensional or surface inspection equipment.
- 05
Functional verification
Check mating, assembly, fixture operation or test function where applicable.
- 06
Measurement review
Confirm the measurement channel, range and supporting device required by the configuration.
- 07
Document preparation
Compile the agreed inspection, test, calibration and traceability records.
- 08
Release review
Verify product identity, quantity and document scope before shipment.
Inspection capability
Measurement methods selected for the feature being verified
KingPo uses dimensional, optical, thread and surface inspection resources to support the agreed product and documentation scope.
CMM dimensional inspection
Coordinate measurement for connector gauges, reference connectors and precision fixtures where dimensional evidence is required.

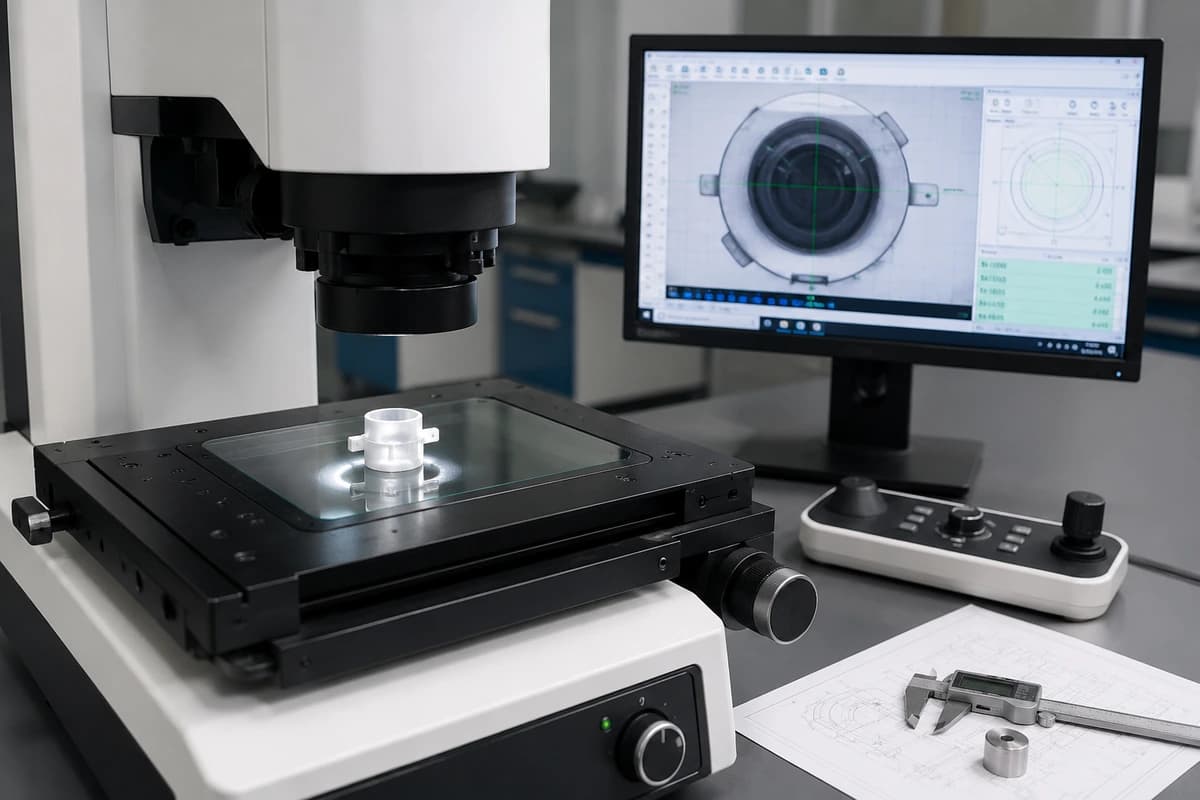

Optical and vision measurement
Non-contact review of profiles, edges, diameters, angles and small connector features.
Thread profile inspection
Thread profile, pitch, flank and lock-interface inspection for threaded connector and gauge features.
Surface roughness review
Surface-finish measurement for relevant mating, sealing and gauge surfaces when included in the agreed scope.
Height and linear measurement
Height, step, depth and other linear checks for components, assemblies and fixtures.
Mating and functional checks
Practical checks of connector engagement, fixture fit and equipment operation against the confirmed application.
Product verification matrix
Typical checks and available evidence
Final inspection points and documents are confirmed against the selected product, standard and order scope.
| Product type | Typical verification focus | Typical document output |
|---|---|---|
| Reference connectors | Figure identity, mating side, critical dimensions | Dimensional report; calibration scope when requested |
| GO / NO-GO gauges | Gauge function, contact features, critical dimensions | Inspection record or agreed certificate |
| Dimensional gauges | Specified geometry, datum and measurement method | Dimensional report with agreed results |
| Test fixtures | Interface, alignment, load path and equipment fit | Inspection and functional-check record |
| Leakage equipment | Pressure or vacuum channel, fixture connection and operation | Functional test and calibration documents as agreed |
| Force / torque equipment | Load path, fixtures, range and measurement channel | Functional test and calibration documents as agreed |
| Complete test systems | System configuration, included methods and component compatibility | Configuration list and scoped verification package |
Scope clarity
Inspection, verification and calibration are different services
Inspection
Confirms physical features or dimensions against the agreed drawing, specification or product requirement.
Functional verification
Confirms that an assembly, fixture or test function operates as intended for the agreed configuration.
Calibration
Establishes measurement results and traceability for defined parameters, ranges and equipment.
Traceability & documentation
Records stay connected to the supplied configuration
Product identity and the agreed inspection or test scope provide the link between the requirement, release decision and shipment documents.
- 1Requirement
- 2Product identity
- 3Inspection or test record
- 4Approved release
- 5Shipment documentation
Available documents depend on the product and order scope. Request the required report, result format, certificate wording and traceability details before quotation.
ISO 80369 test chain
Quality depends on the complete test configuration
A valid setup links the device under test to the correct reference interface, fixture, measurement system and method. Review the applicable standard and test method before final product selection.
01Device under test
02Reference connector or gauge
03Fixture
04Measurement system
05Test method
06Result
Verification evidence
Show the product, inspection and configuration
Real product and equipment evidence is more useful to buyers than general quality claims.
Prepare an inquiry
Information that helps us define the correct verification scope
Share what is already known. KingPo can then help identify missing product, fixture, test and documentation details.
- Applicable standard and edition
- Figure, annex or test clause
- Connector family and mating side
- Device under test description
- Reference connector or gauge required
- Fixture or adapter requirement
- Test method
- Measurement range
- Accuracy or uncertainty expectation
- Calibration scope
- Inspection-report requirement
- Certificate wording or traceability need
- Quantity
- Target delivery date
