Test method

ISO 80369 Assembly and Disassembly

Method page for controlled connector assembly, reference connector selection, gauge-set context and downstream ISO 80369 test preparation.

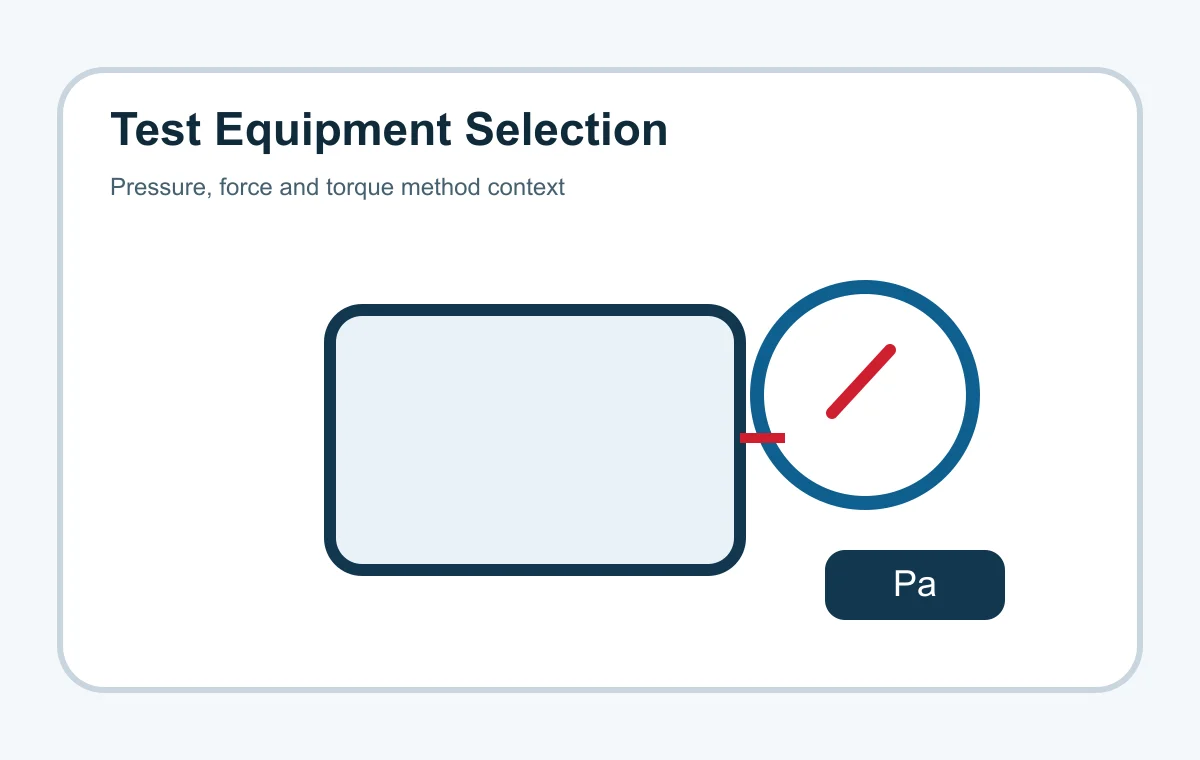

ISO 80369 Assembly and Disassembly ISO 80369 method setup visual
What this method verifies

Select the method before selecting the equipment

Assembly and disassembly should be presented as the controlled preparation and handling context around the connector pair, not as a single universal pass/fail method. KingPo supplied Connector Assembly Device material gives the clearest equipment evidence for the assembly step.

ISO 80369-20 equipment requirements and ISO 80369-7 Luer reference connectors both affect the setup. The selected connector type determines the required reference connector, torque weight and assembly arrangement.

Complete test setup

Build the measurement chain around the connector

Identify the device under test, select the correct mating or reference interface, support it with the required fixture, connect the measurement channel, and define the result record before requesting equipment.

DUTReference interfaceFixtureInstrumentMeasurementResult
Equipment controls and workflow

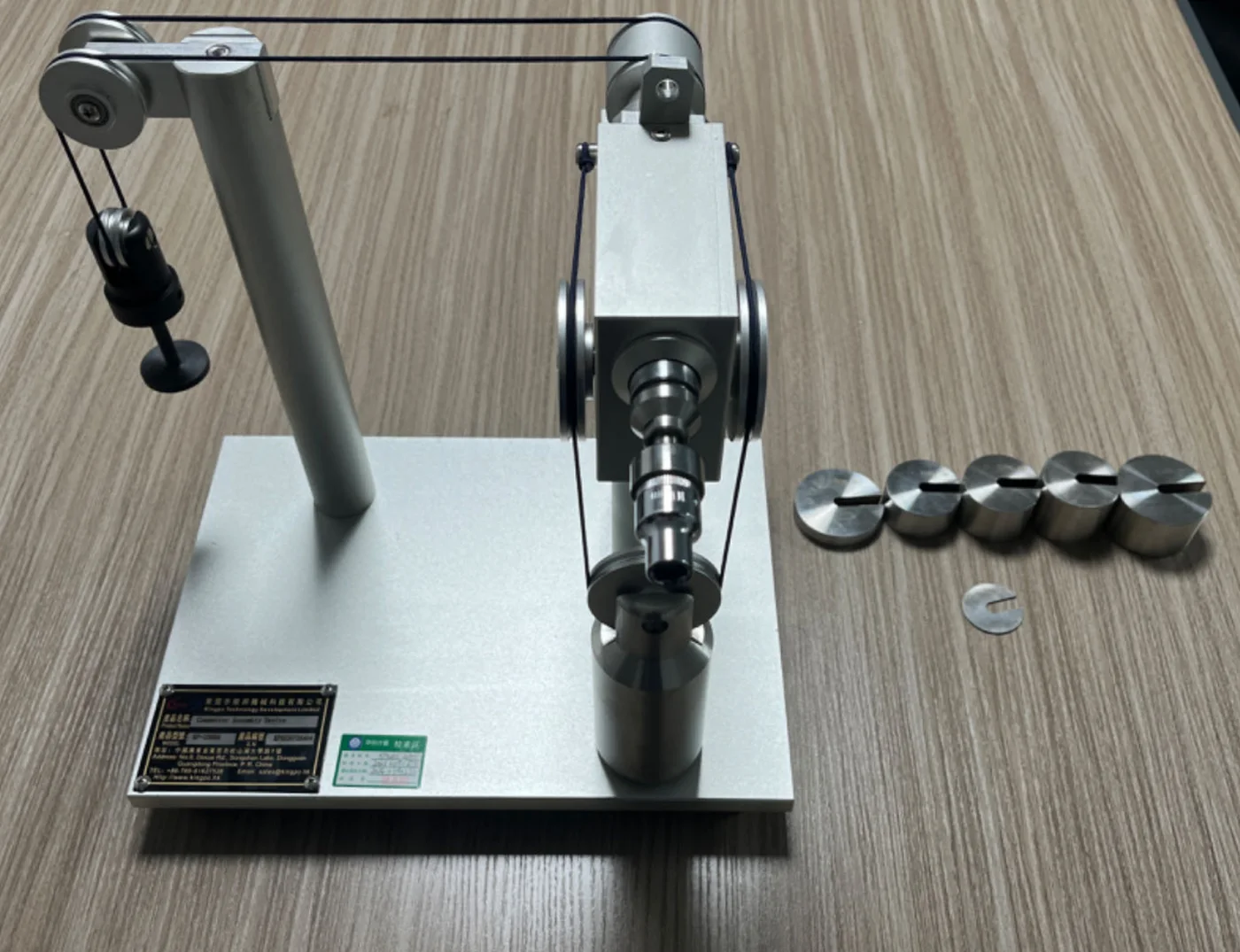

Controlled connector assembly fixture and accessories

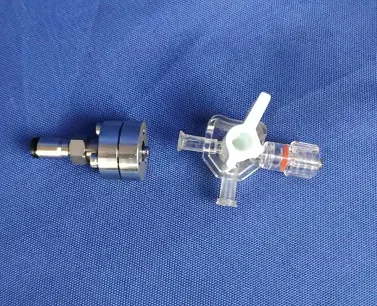

KingPo supplied Connector Assembly Device material documents the device role, accessories and operation outline for connecting a reference connector with a test sample under controlled force and torque.

  • Assembly force range recorded in the supplied material: 26.5-27.5 N.
  • Assembly torque for slip connectors recorded in the supplied material: 0.018-0.17 N.m.

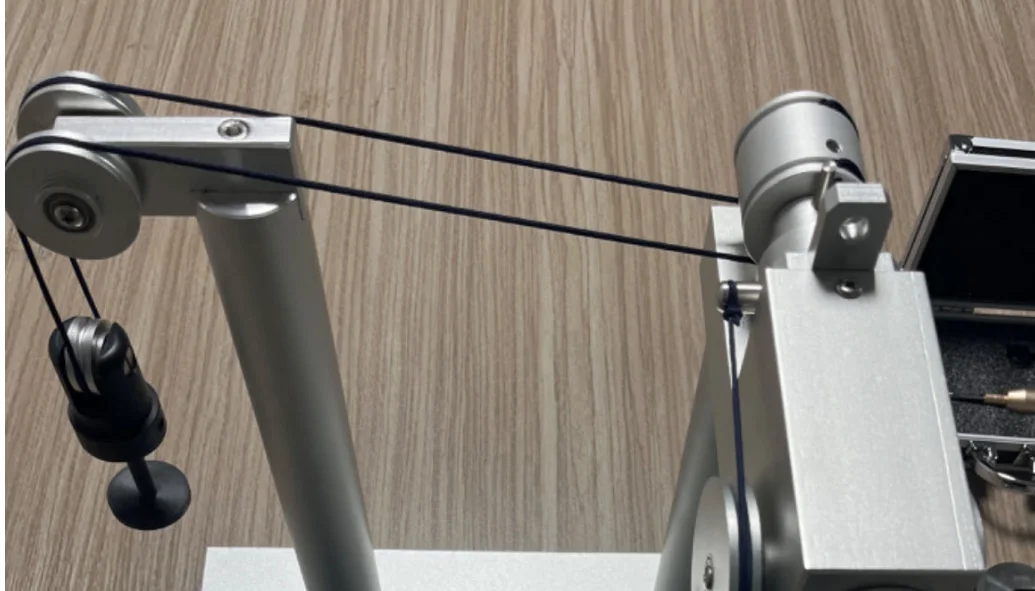

  • Accessory list includes an axial force-weight, six torque-weights, operation instruction, warranty card and packing list.
Plan the test and quotation

Confirm the sample, setup and required records

Ask for connector side, target standard part, selected reference connector figure, assembly/disassembly purpose and downstream test method.

Laboratory preparation

  • Identify whether the request is assembly conditioning, luer gauge verification, leakage preparation, unscrewing preparation or overriding preparation.
  • Select the reference connector and sample side before mounting the reference connector in the assembly device.
  • Use the manual force-and-torque assembly setup where the selected ISO 80369 workflow requires controlled connector assembly.
  • Confirm whether the RFQ also needs the ISO 80369-7 reference connector set, Annex B/C leakage tester, Annex D leakage tester or Annex F axial-load tester.

Send these details with your inquiry

Connector sideReference figureAssembly purposeForce/torque conditionDownstream methodComplete set need

Use Connector Assembly Device photos for the assembly fixture. Use ISO 80369-7 catalogue pages for the reference connector or gauge set selection.
